B747-200F

Length

Wing Span

Height

Max. Range

Cruising Speed

Maximum payload

Maximum volume capacity

Max.pallet load (Main Deck)

Max.container(LD3) load(Lower Deck)

70.66m

54.44m

19.41m

7,415km

916km/h

117.75t

24,923cuft

29EA

30EA

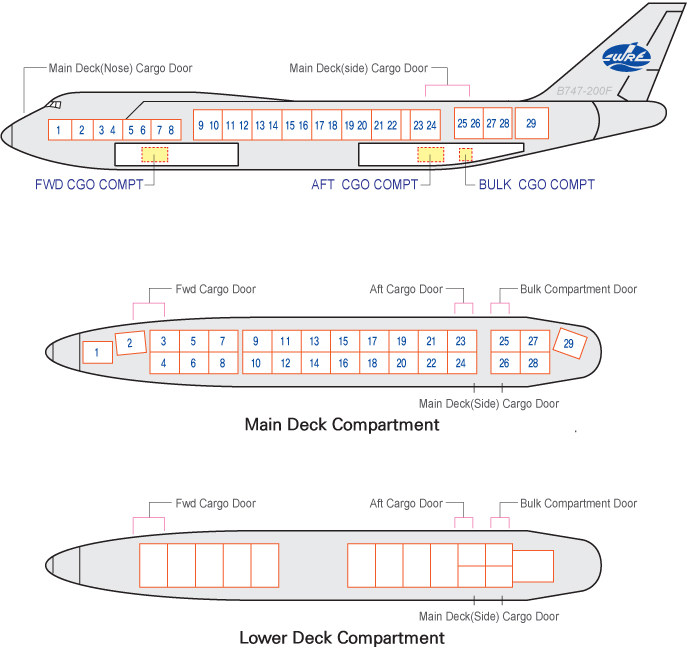

Door Size (Unit : inch)

TYPE

Nose Door

Side Door

Lower Door

Bulk

Door Size(W x H)

140 x 98

134x 123

104x 66

44 x 47
