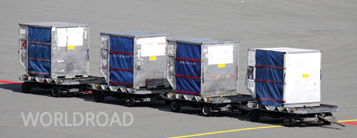

CONTAINER
ULD TYPE
(IATA Code)
Max Capacity
(Tare Weight)
Dimention
(Inch)
Utility
Loading Possible
Aircraft Type
LD3 Refrigerated Container (RKE)
LD3 Garment
Container (AKE)
LD3 Refrigerated Container (RKN)
LD6 Container (ALF)
LD9 Container (AAP)
LD9 Refrigerated Container (RAP)
LD9 Refrigerated Container (RAP)
LD9 Refrigerated Container (RAP)
LD9 Refrigerated Container (RAP)
LD9 Refrigerated Container (RAP)
1,588 kg(105 kg)
1,588 kg(270 kg)
1,588 kg(260 kg)
3,175 kg(175 kg)
6,033 kg(270 kg)
6,033 kg(527 kg)
6,804 kg(465 kg)
6,804 kg(475 kg)
6,804 kg(875 kg)
6,804 kg(945 kg)
60.4 x 61.5 x 64
60.4 x 61.5 x 64
60.4 x 61.5 x 64
60.4 x125 x 64
88 x 125 x 64
88 x 125 x 64
96x 125 x 96
96x 125 x 96
96x 125 x 94.5
96x 125 x 94.5
General Cargo
Garment
Perishable CGO
Freeze Cargo
Perishable CGO
Freeze Cargo-
Equipped with
Automated Temperature
System
General Cargo
General Cargo
Perishable CGO Freeze Cargo
General CGO Garment
General CGO Garment
Horses
Horses
B747 / B747F B747-Combi
A300,
A330
MD11 / MD11F
B777 (Lower Deck Only)
B747F
B747-Combi
(Main Deck Only)
MD11F, B747F
B747-Combi
(Main Deck Only)
B747F
(Main Deck Only)
MD11F, B747F
(Main Deck Only)
PALLET
ULD TYPE
(IATA Code)
Max Capacity
(TARE WT)
Dimention
(W X L, Inch)
Utility
Aircaft Type
88Inch Pallet
(PAP, PAG)
96Inch Pallet
(PMC)
Half Pallet
(PLB)
16FT Pallet
(PZA)
20FTPALLET
(PGE, PGF)
6,804 kg(109 kg)
6,804 kg(117 kg)
6,804 kg(465 kg)
11,340 kg(415 kg)
13,608 kg(499 kg)
88 X 125
96 X 125
96 X 125 X 96
96 X 196
96 X 238.5
General Cargo
General Cargo
General CGO Garment
General, Long &Heavy Cargo
General, Long &Heavy Cargo
B747, B747F
B747-Combi
MD11, MD11F
A300, A330
B777
B747, B747F
B747-Combi
MD11, MD11F
A300, A330
B777
(Lower Deck Only)
B747F, MD11F
B747-Combi
(Main Deck Only)
B747F, MD11F
B747-Combi
(Main Deck Only)
KOOLTAINER
Korean Air is proud to provide "Kooltainer" (Korean Air cool container with temperature control) service for air transport of precision manufactured equipment and advanced medical supplies that are temperature-sensitive.
1. Container Specifications
Container Specifications
RKN Container
(LD3 with temperature control)
MYX BOX
(Small container with temperature control)
ULD code
Internal Volume
Temp control range
Miniumum Chargeable Wt
Temp control range
Others
External Size (L/W/H)
RKN
109 cuft
1,588kg
755kg
-20℃ ~ +20℃
Forklift can be used
Forklift can be used
79 X 60.4X 64 inch
MYX
13 cuft
400kg
200kg
-20℃ ~ +20℃
55 X 39X 30 inch
Note: Temperature control is only available for dropping temperature below, not above, external temperature.
2. Items Requiring The Service
- New value-added medicine and medical supplies
- Human blood or body organ transplants
- Temperature-sensitive food
- Manufactured equipment that requires delicate temperature - condition
3. Container Performanc
- Temperature control is possible in the range between -20C and 20C
- With a one-time setting, it is possible to maintain a constant temperature for up to 48 hours; and with replenishment of battery
- and dry ice, delivery to destination at a constant temperature is also possible
